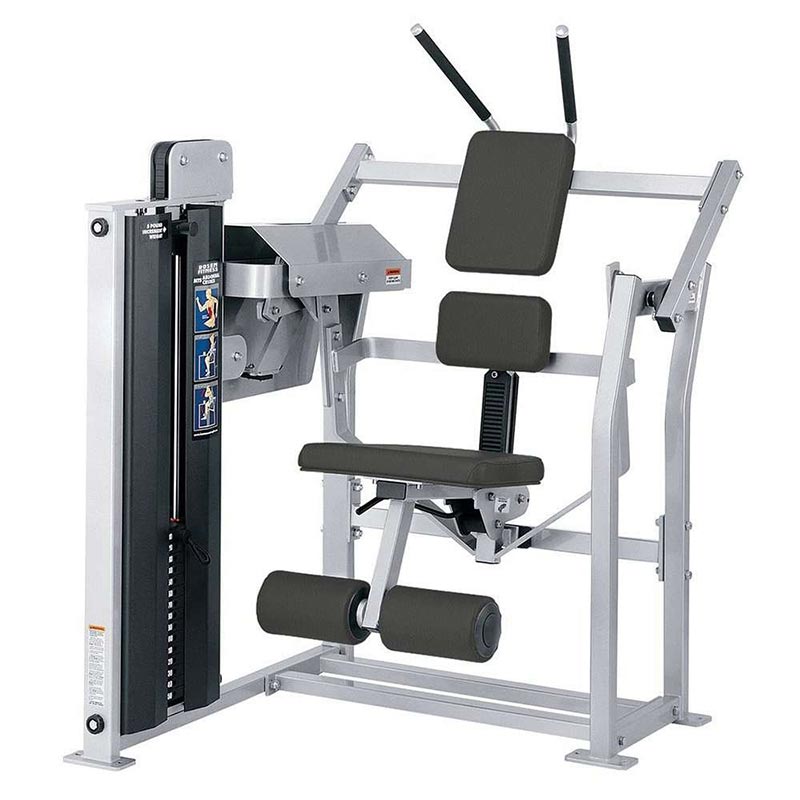

Abdominal Crunch Machine

The Abdominal Crunch Machine utilizes an innovative bidirectional motion mechanism, achieving three-dimensional activation of the abdominal muscles through a compound motion trajectory that involves active upper body flexion and reverse elevation of the lower body. This design breaks through traditional crunch limitations of unidirectional force application, enhancing the contraction efficiency of the rectus abdominis while significantly increasing the synergistic engagement of the transversus abdominis and obliques, thereby constructing a comprehensive and efficient core training solution.

Technical Specifications:

Dimensions: 112cm (L) × 100cm (W) × 143cm (H)

Recommended Training Space: 173cm × 130cm (with suggested surrounding safety zone)

Machine Weight: 241kg (precision weight structure ensures training stability)

Weight Stack: 68kg adjustable weight set (meets progressive training needs)

Load Capacity: Compliant with 136kg maximum user weight safety standards

Innovative Design Features:

Intelligent Guidance System

Equipped with a dynamic anatomical illustration panel, providing 3D muscle activation demonstrations and phased movement prompts to help users establish precise neuromuscular control patterns.

Precision Transmission Mechanism

Utilizes an industrial-grade synchronous belt drive system combined with high-precision linear guides, enabling millimeter-level motion path control and eliminating lateral deviation and momentum loss common in traditional equipment.

Ergonomic Support System

Features a curved back pad designed to match the physiological curvature of the spine, constructed with memory foam composite layers and hydrodynamically optimized edges to maintain optimal pressure distribution even during high-intensity training.

Modular Safety Protection

A removable full-coverage protective shroud made of polycarbonate composite material ensures 360° motion protection while maintaining visibility of the transmission system.

Advanced Weight Management System

Heat-treated alloy steel weight plates (individual plate tolerance ≤5g)

Intelligent magnetic locking selector (anti-misoperation safety design)

Progressive stroke resistance adjustment system (supports 1.25kg fine-tuning precision)

Adaptive Adjustment Platform

A multi-axis linkage adjustment mechanism equipped with a ball screw positioning system allows switching between sitting and lying positions within 3 seconds, accommodating users with heights ranging from 145cm to 195cm.

Composite Training Base

The anti-slip foot platform is treated with nano-level polyethylene coating technology, featuring diamond-shaped drainage patterns and an optimized tilt angle design to provide ultimate slip resistance even in humid environments.

Military-Grade Structural Frame

11GA high-strength structural steel main frame (yield strength ≥345MPa)

Seven-layer electrostatic powder coating process (passes 2000-hour salt spray test)

Distributed stress-bearing structure (safety factor 3.5 times industry standard)

Professional Grip System

7075 aviation aluminum locking collars with ratchet anti-reverse mechanism

Thermoplastic injection-molded silicone rubber grips (Shore hardness 65±3)

Ergonomic wave-patterned anti-slip surface design

Training Scientific Value:

The Abdominal Crunch Machine features unique eccentric-concentric dual-phase control functionality, which specifically enhances deep core stability and enables comprehensive coverage from foundational muscular endurance training to explosive strength development.
