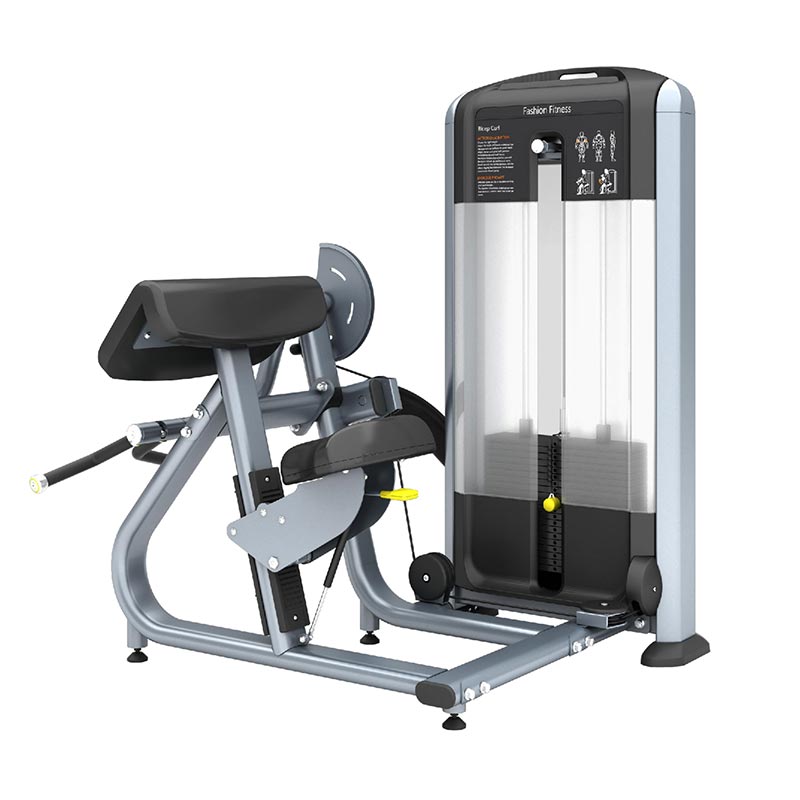

Commercial Preacher Curl Machine

Core Design Philosophy: Precision Arm Development

This Commercial Preacher Curl Machine is engineered to master the isolation of the elbow flexors through intelligent support and biomechanical alignment.

Anatomically-Correct Arm Positioning: The contoured arm pad is strategically designed with a tapered leading edge. This allows for full anterior deltoid and chest clearance, promoting natural shoulder positioning and unrestricted breathing throughout the exercise, unlike restrictive flat pads.

Optimized Handle Trajectory: Handles are fixed at a precise, inward-rotated angle. This positioning maintains the wrist in a strong, neutral alignment and the elbow in its natural tracking path throughout the entire curling motion, maximizing biceps peak contraction and minimizing stress on the wrist and elbow joints.

Pure Isolation Focus: By fully supporting the upper arms on the angled pad, the machine effectively eliminates momentum and minimizes shoulder involvement. This forces the targeted elbow flexor muscles—the biceps and brachialis—to bear the full load, ensuring a high-intensity, focused stimulus.

Premium Construction & Ergonomic Specifications

Crafted for demanding commercial environments, each component is selected for durability, intuitive operation, and long-term performance.

System Module Specifications & Engineering Benefits

Primary Frame Structure The main chassis utilizes a large-format D-profile steel beam (53*156*T3mm) for exceptional frontal rigidity. Movement arms are constructed from robust flat-oval steel tubing (50*100*T3mm), providing optimal strength-to-weight ratio and resistance to torsional flex during use.

Micro-Adjustment Resistance System Incorporates a 2.5kg precision micro-weight selector. This allows for fine-tuned progressive overload, enabling advanced techniques like drop sets or overcoming strength plateaus with increments smaller than standard weight plates.

User Interface & Comfort Systems The ratcheting, gas-spring assisted seat offers effortless, tool-free adjustment across a wide height range. A simple lift of the lever allows quick repositioning, with adjustment points color-contrasted for immediate visibility.

Contact Points & Grip Handle assemblies feature machined aluminum end caps and are covered with non-slip, textured rubber sleeves for a secure and comfortable grip in all conditions.

Premium Upholstery The arm pad and seat utilize a multi-density polyurethane foam core for ideal firmness and longevity, wrapped in high-performance synthetic leather that is durable, easy to clean, and resistant to wear.

Drive & Finish Systems The cable is a high-grade 6mm diameter 7x19 galvanized steel wire rope. Pulleys are high-strength nylon (PA) co-molded with sealed ball bearings for silent, maintenance-free operation. The finish is an automotive-grade thermosetting powder coat for superior corrosion resistance and a lasting visual appeal.

Key Advantages & Training Applications

Enhanced Muscle Activation & Safety: The fixed, angled arm path and supportive pad structure ensure strict form, leading to superior biceps isolation and a significantly reduced risk of elbow strain compared to free-weight preacher curls.

Unmatched User Adaptability & Ease of Use: The intuitive ratcheting seat mechanism and clear visual cues allow users of virtually any stature (approximately 150cm to 195cm) to achieve a perfect fit in seconds, streamlining workout flow in busy gyms.

Commercial Durability & Low Maintenance: From the heavy-gauge steel frame to the bearing-injected pulleys and industrial-grade upholstery, every element is built to withstand high-frequency use with minimal upkeep, ensuring a high return on investment.

Versatile for All Training Goals: The precise resistance control (via a 70 kg weight stack and micro-weight option) makes it equally effective for high-rep metabolic work, muscle-building hypertrophy sets, and controlled rehabilitation protocols under professional guidance.

Conclusion

The Yingruis Commercial Preacher Curl Machine is a definitive tool for serious arm training. It elevates a basic exercise through thoughtful ergonomics and commercial-grade construction, delivering an unrivaled combination of targeted muscle stimulation, joint protection, and operational reliability. For facilities and athletes dedicated to meticulous arm development, it represents an essential, high-value asset.
