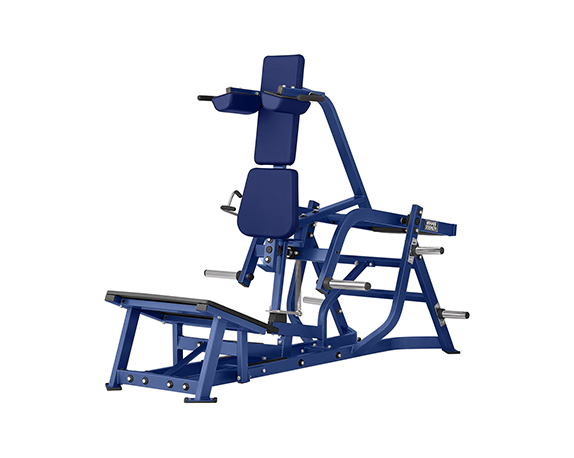

V-Squat Trainer

1. Core Functional Advantages

(1) Independent Bilateral Plate-Loaded Heavy-Duty Design for Progressive Overload Suitable for All Trainee Levels

This machine is equipped with dual independent Olympic weight horns compatible with standard 50mm Olympic plates, with a maximum single-side load of 125kg and a total overall load capacity of 250kg. Users can add or remove plates freely to complete progressive overload training, perfectly suitable for beginner light entry training, bodybuilding hypertrophy preparation, powerlifting limit heavy training and elite athlete physical conditioning. The V-type lever mechanics maintain even linear resistance throughout the full range of motion, with peak tension at the bottom squat position to fully stimulate the entire lower body muscle groups. Users can easily shift focus between muscle groups by adjusting stance width and foot position: narrow forward stance emphasizes quads, while wide rear stance targets glutes and hamstrings for refined differentiated lower-body training. Integrated side plate storage horns enable neat plate placement to save gym space with convenient plate access. The counterbalanced swing arm reduces initial starting resistance for easy entry, enabling gradual low-intensity rehabilitation training safely for seniors and post lower-limb injury users, covering fitness trainees from complete beginners to professional competitive athletes comprehensively.

(2) V-Shaped Bionic Biomechanical Trajectory & Full Enclosed Limit Supports for Lumbar & Knee Protection Against Compensation

Developed based on thousands of lower-limb biomechanical calculations, the exclusive V-shaped arc swing path perfectly follows the natural hip-knee flexion angle of human squat movement, with the rotating shaft precisely aligned with the hip-knee linkage axis, fundamentally avoiding common injuries of free squats such as lumbar shear force, knee valgus and excessive ankle pressure. It features front & rear dual-mode high-density shoulder pads, widened full backrest, 7-angle adjustable anti-slip diamond footplate, high/low dual anti-slip handles and one-touch pneumatic safety locking mechanism, fitting users from 150cm to 200cm tall, supporting two core training modes: forward stance for quad focus and reverse stance for glute priority. During training, the shoulders and back fit tightly against the support pads to fully lock the torso, so movement can only be driven by hip and knee flexion of the lower limbs, completely eliminating compensatory movements such as lumbar flexion, hip hiking, shoulder shrugging and core overloading, locking tension firmly on leg muscles only. Beginners can quickly master standard squat mechanics and get rid of habitual lumbar and knee discomfort from free squats. Advanced lifters safely handle heavy plate loads to refine leg circumference and glute contour efficiently and break lower-body strength plateaus, with vastly superior long-term lumbar and knee safety compared to barbell squats and ordinary hack squat machines.

(3) Heavy-Duty Main Shaft Silent Bearing Transmission for Ultra-Smooth Operation & Long-Term Commercial Durability

The full V-shaped swing frame adopts thickened solid quenched main spindles plus multiple sets of heavy-duty fully sealed maintenance-free silent bearings, maintaining ultra-smooth quiet operation for hundreds of thousands of squat cycles without jamming, abnormal noise or backlash clearance, delivering even and consistent force transmission. All spindle pivot points are quenched and hardened for outstanding wear and impact resistance. The sealed bearings require no regular lubrication, greatly cutting later maintenance costs for gym facilities. The entire V-type main frame is reinforced with triangular mechanical strengthening, resisting structural deformation under full maximum load, with excellent impact resistance and fatigue performance, boasting a far longer service life than conventional commercial equipment under year-round high-intensity use.

(4) Wide Commercial Scenario Compatibility to Complete Full Lower-Body Training Matrix for Diversified Gym Operation

In commercial gyms and personal training studios, the Plate Loaded V-Squat Trainer forms a complete lower-body push-pull training system together with leg extension, leg curl and deadlift machines, serving as the core flagship equipment for leg-day workouts. It supports daily member leg & glute hypertrophy shaping, private posture correction (anterior pelvic tilt, irregular lower-limb force line), specialized strength training for ball games, track & field and weightlifting athletes, and post lower-joint injury rehabilitation courses, capable of dozens of daily non-stop user rotations. New fitness practitioners easily distinguish activation between legs, waist and hips via the fixed trajectory and full support structure to master standard squat form rapidly and prevent chronic lumbar and knee injuries caused by improper movement. Intermediate and advanced trainees adjust stance and weight freely to precisely sculpt thigh and glute lines for full well-defined lower-body shape. Professional competitive athletes consolidate fundamental lower-body strength via stable heavy training to directly boost performance in jumping, sprinting and competitive confrontation events. Its compact regular footprint saves valuable training space, and it fits perfectly in premium garage gyms and private home gyms to establish professional home lower-body strength training systems effortlessly.

2. Premium Commercial-Grade Manufacturing & Long-Lasting Durability for Year-Round High-Frequency Commercial Use

(1) Heavy-Duty National Standard Q235 Steel Frame with Robotic Full Seam Welding for Unshakable Stability

The entire main frame is constructed of national standard thickened Q235 rectangular steel tubing (120×60mm, 3.0mm wall thickness). Double-layer steel reinforcement is applied on all load-bearing pivot points, main spindles and plate loading positions. Industrial robotic positioning full-seam welding produces uniform complete welds, followed by professional high-temperature stress relief treatment after manufacturing, effectively preventing frame deformation, weld cracking and machine wobble under long-term ultra-heavy loads. The frame adopts double-layer high-temperature electrostatic powder coating with professional sandblasting pretreatment for strong adhesion: anti-rust primer base plus scratch-resistant top finish, resisting sweat corrosion, humid gym environments and daily bumps, retaining premium appearance without paint peeling or rust for years. With a total net weight of 235kg and an widened integrated trapezoidal stable base fitted with thick non-slip rubber foot pads, the machine remains perfectly stable with zero shifting even under full maximum unilateral heavy squat load, reaching stability standards of top-tier imported high-end commercial fitness equipment.

(2) Premium Upholstery & Full 304 Stainless Steel Hardware for Comfort, Wear Resistance and Ultra-Low Maintenance

Front/rear shoulder rests and full backrest pads are filled with high-resilience high-density cold-molded foam that never collapses or hardens under long-term pressure. The surface is wrapped in thick commercial waterproof, sweat-resistant PU leather for easy stain wiping and outstanding compression & friction resistance, retaining ergonomic softness after years of heavy commercial operation. All main spindles, weight horns, fixing screws, adjustment grips and locking knobs are manufactured from 304 stainless steel for superior rust resistance, offering smooth tight adjustment free of slipping or loosening. The sealed bearings are maintenance-free with no need for frequent oiling, greatly reducing manpower and financial costs for later part replacement and maintenance for gym venues, delivering excellent long-term cost performance.

(3) Strict Pre-Delivery Full Inspection & Comprehensive Multi-Layer Safety Protection Complying with CE International Commercial Standards

Every V-Squat Trainer undergoes rigorous pre-factory tests including full limit load-bearing testing, 100,000-cycle reciprocating squat fatigue testing, overall stability inspection and stroke limit safety examination to strictly control structural strength in every detail. All frame edges are fully rounded and polished to remove sharp corners; a dual-height pneumatic safety catch mechanism enables quick locking for protection under fatigue to prevent accidental falling; the platform adopts thickened diamond anti-slip steel plate to eliminate foot slipping risk; anti-drop limit collars are equipped on weight horns to prevent plate falling off, providing comprehensive multi-layer safety guarantee for users. Its structural design fully complies with CE international commercial fitness equipment safety regulations, with durability and safety grades far superior to household machines, making it a high-return long-term core lower-body investment for gym operation.

Item Specification

1.Stand centrally on the platform with feet shoulder-width apart and toes slightly outward. Attach your shoulders and back firmly to the front shoulder pads and backrest, grip the high-position anti-slip handles steadily, and keep your torso tightened throughout the set.

2.Release the pneumatic safety catch, squat down slowly and evenly pivoting at hips and knees until thighs are nearly parallel to the ground. Keep your back pressed tightly against the backrest all the time, with knees aligned consistently with toe direction.

3.Drive upward to stand via heel push-off, squeeze leg muscles firmly for 1 second at full extension. Control the eccentric lowering phase slowly and evenly. Never round your back, let knees drift excessively forward, stand on tiptoes or generate momentum for assistance.

Stand facing backward toward the backrest, attach shoulders to the rear pads, place feet wider toward the rear of the platform. Initiate movement by pushing hips backward during squatting to fully stretch posterior glute and hamstring chains, and drive upward mainly with glute contraction. Complete 3 to 4 sets of 10–15 reps per set for regular hypertrophy training; choose heavier loads of 6–10 reps per set for lower-body strength improvement. Unilateral single-leg training can be adopted to correct bilateral lower-limb strength imbalance. Pair it with leg extension and leg curl machines in regular routines to realize balanced comprehensive development of anterior/posterior thighs and hip muscles.

Closing CTA

To safely perform heavy lower-body strength training, precisely sculpt leg and glute contour, and avoid lumbar and knee injuries common with free barbell squats, the Yingruis Plate Loaded V-Squat Trainer is an irreplaceable flagship essential machine for the lower-body strength zone of commercial gyms. Powered by the classic V-shaped bionic lever trajectory and bilateral independent plate loading design that supports freely adjustable weight for progressive overload, the dual-stance training mode targets both quadriceps and glutes, perfectly balancing training accuracy, joint safety protection performance, and long-lasting commercial durability. As a direct factory supplier, we support full customization on frame color, laser logo engraving and structural dimensions with fast delivery from abundant ready stock and complete long-term full machine after-sales warranty services. It is the optimal cost-effective choice for equipping new gyms with full lower-body main equipment or upgrading existing fitness facilities.
