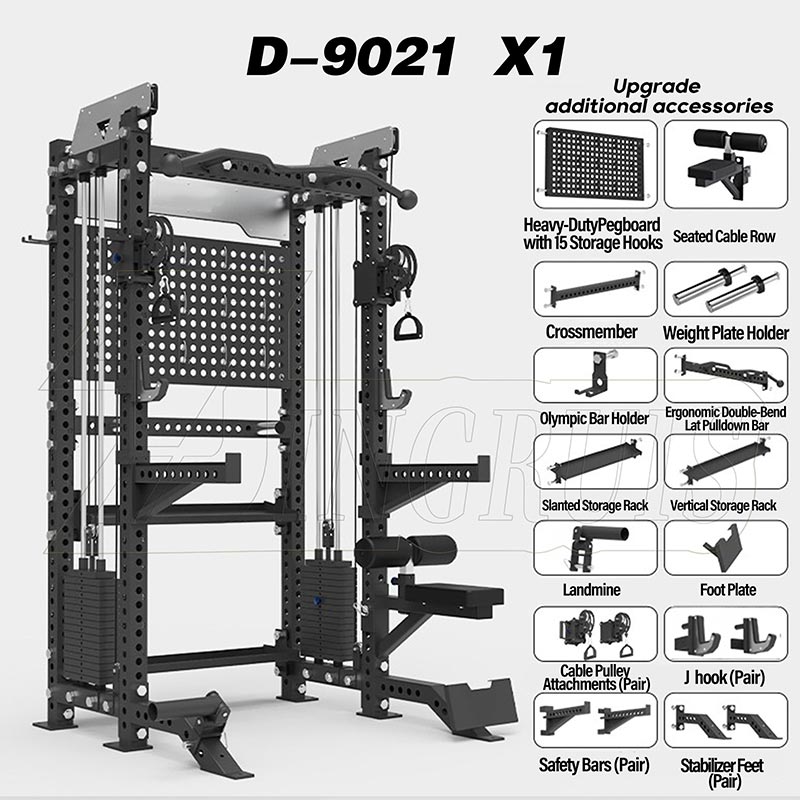

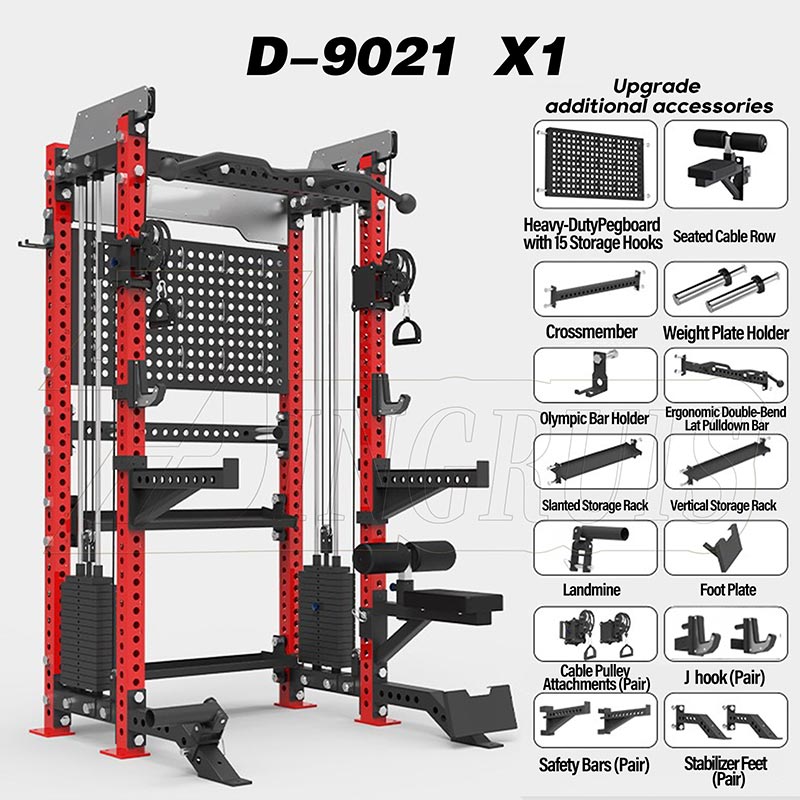

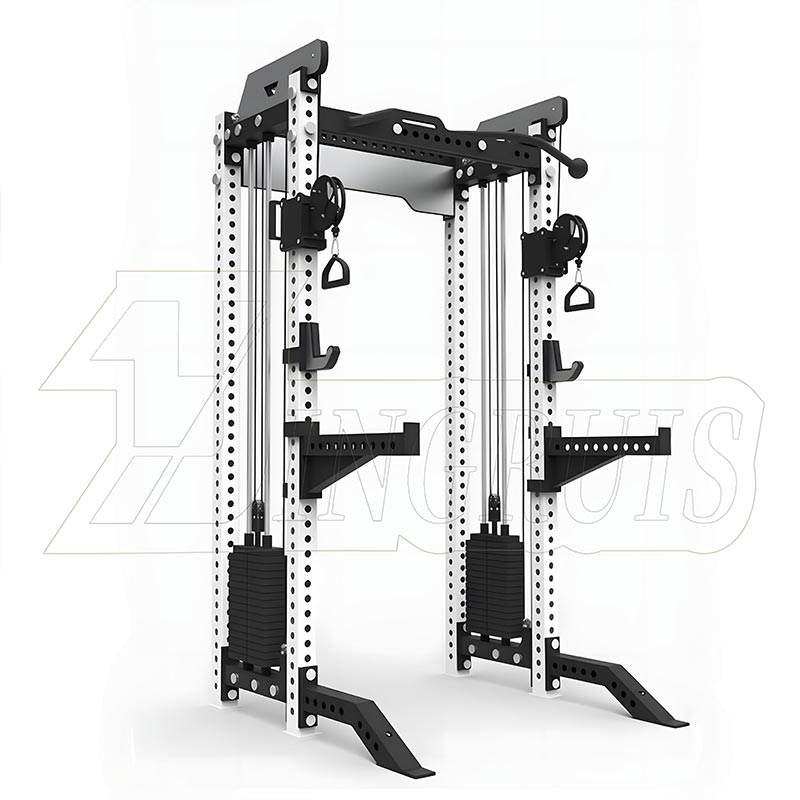

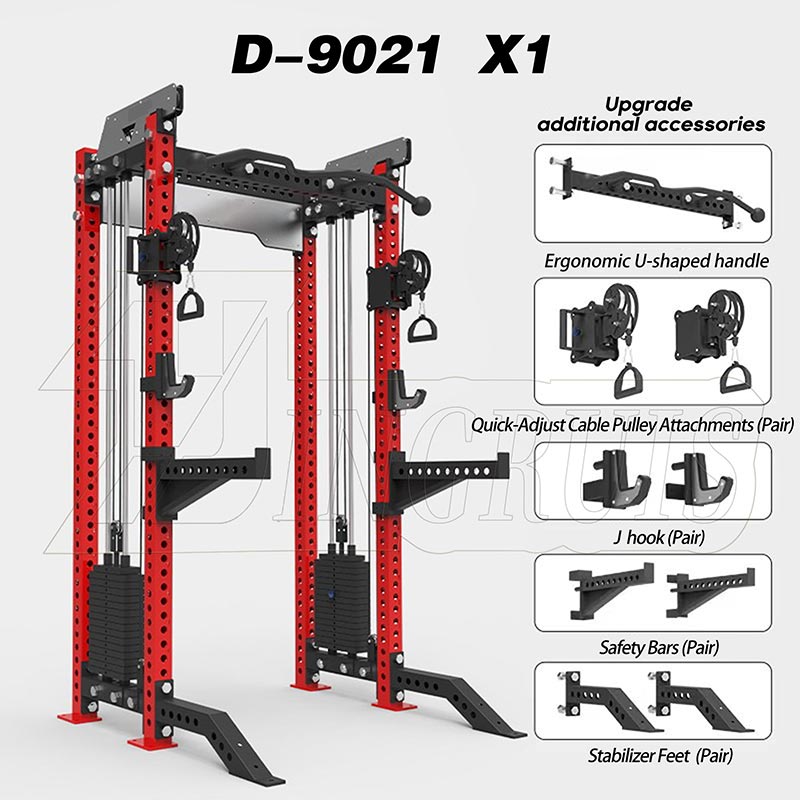

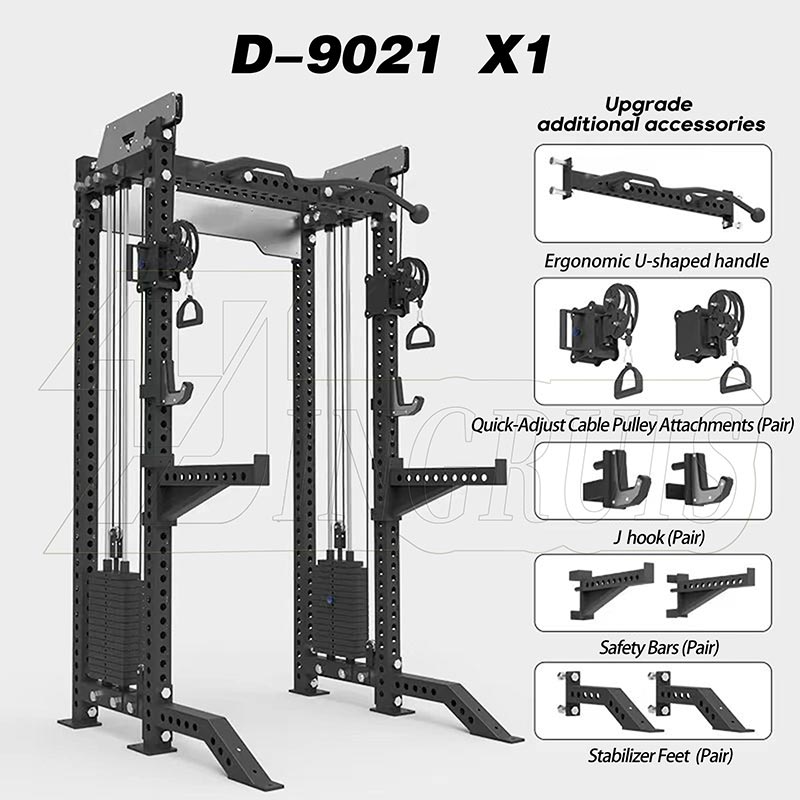

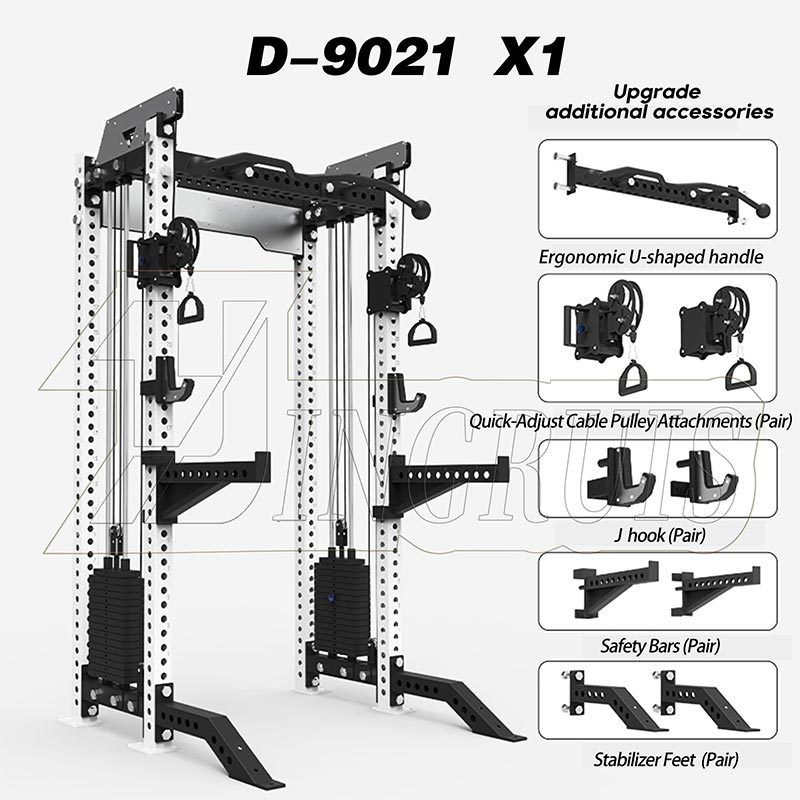

All-in-One Power Rack with Cable Crossover

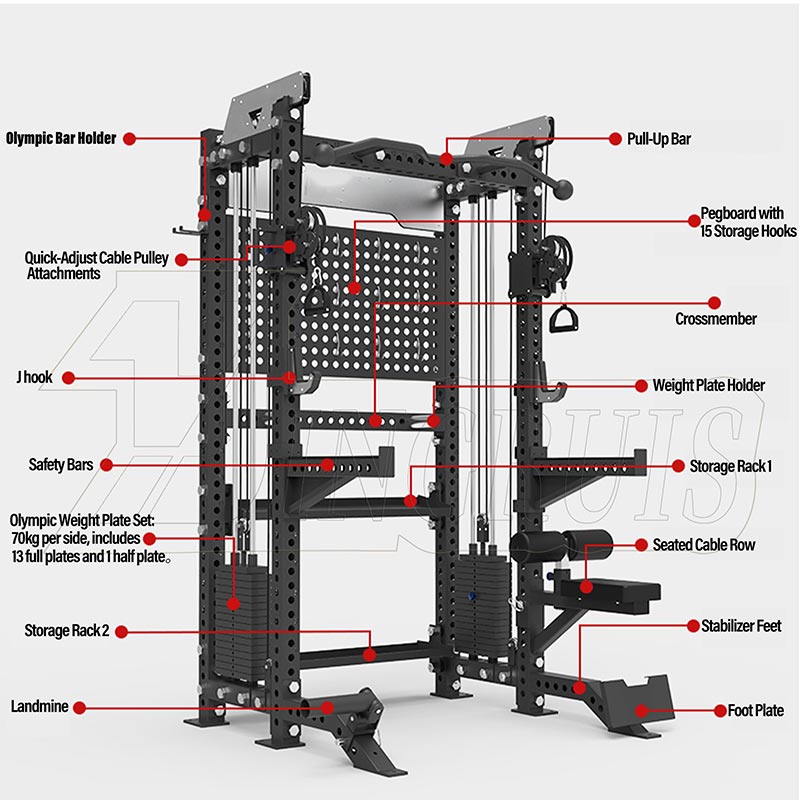

Core Components

This All-in-One Power Rack with Cable Crossover primarily consists of the following three systems:

Squat Rack System:

Main Structure: Constructed from reinforced 50mm×50mm or larger square steel tubing, welded into a stable square frame. Commercial-grade models typically have rated safe working load capacities ranging from 1,000 lbs (approx. 454 kg) to 2,200 lbs (approx. 998 kg) or higher.

Safety Design: Equipped with standard adjustable-height safety pins and spotter arms to ensure safety during heavy lifts like bench presses and squats.

Adjustability: The uprights feature closely spaced hole patterns (typically on 2-inch / approx. 5 cm centers), allowing users to quickly adjust the height of attachments like J-hooks and safety arms based on their height and the exercise.

Smith Machine System:

Integrated Rails: Precision-machined vertical or slightly angled guide rails are integrated within or adjacent to the squat rack frame. The barbell sleeve runs on bearings, providing a smooth, vertical movement path.

Auto-Lock & Buffer: Features a multi-point auto-lock safety mechanism that can secure the barbell sleeve at any height. Some high-end models include a buffer device at the bottom to reduce impact noise when re-racking.

Bilateral Cable Crossover System:

Independent Dual Cables: All-in-One Power Rack with Cable Crossover is the functional heart of the apparatus. The system incorporates two completely independent steel cable assemblies, weight stacks, and pulley systems, located on either side or at the rear of the frame.

Omni-Directional Training: By attaching different handles (straight bar, V-bar, rope, etc.), users can perform dozens of unilateral or bilateral exercises like cable flyes, face pulls, triceps pushdowns, rows, and lat pulldowns, vastly expanding training variety.

Core Product Advantages

Advantage Dimension Specific Description

Space Efficiency Occupying approximately 2-4 square meters (e.g., 71 inches L x 48 inches W), a single unit can replace a squat rack, Smith machine, and a separate cable crossover station, saving gyms at least 50% of the floor space typically required for such equipment.

Functional Comprehensiveness Integrating three core strength training modules, it supports everything from free-weight training to fixed-path machine training and cable-based functional training, covering nearly all exercises for the upper body, lower body, and core muscles.

Commercial & Residential Versatility Its robust construction and high load capacity make it durable enough for the high-frequency use of commercial gyms, while its all-in-one functionality also makes it an ideal, comprehensive solution for high-end home gyms.

Training Fluidity The integrated design allows users to perform "supersets" or "circuit training" in one spot without moving between different stations, significantly enhancing training density and efficiency.
