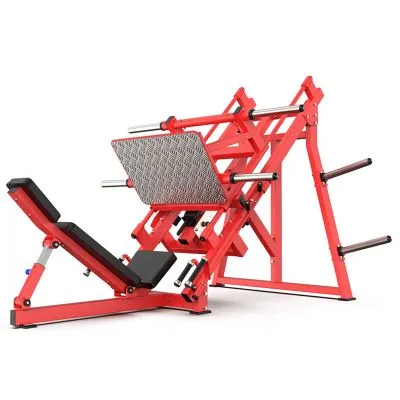

Linear Leg Press

1. 45° Linear Bionic Slide Track & Differentiated Bilateral Plate Loading

Industry-standard dual parallel chrome linear guide rails follow natural hip-knee biomechanics, delivering consistent linear resistance with no dead spots. Multiple foot stance options for targeted muscle focus: narrow forward stance for quads, wide rear stance for glutes & hamstrings, forefoot stance for calf raises. Independent 50mm Olympic weight horns allow different weights on left/right sides to correct unilateral leg strength imbalance. Max single-side load: 150kg, total overall load up to 300kg for progressive overload training for beginners, bodybuilders, powerlifters and post-injury rehab users. Built-in side plate storage pegs keep training space tidy. Counterbalanced sled lowers initial entry resistance for safe low-intensity rehabilitation training.

2. Full Enclosed Ergonomic Support & Multi-Layer Safety System for Lumbar & Knee Protection

3-position adjustable thick backrest filled with high-density cold-molded foam and sweat-proof PU leather fits users 150–198cm tall, maintaining neutral spine position to eliminate lumbar shear stress common with free barbell squats. Extra-wide diamond anti-slip steel footplate provides ample stable standing space. Dual high-position anti-slip safety handles plus multi-stage pneumatic safety catches lock the sled instantly under fatigue to prevent weight dropping. Torso is fully restrained by padding, so movement can only be driven by lower-limb hip/knee flexion, eliminating lumbar and trapezius compensation for safe heavy lifting.

3. Heavy-Duty Linear Silent Transmission for Long-Term Commercial Durability

Dual solid quenched chrome guide shafts paired with multiple sets of industrial fully sealed maintenance-free silent bearings ensure ultra-smooth quiet operation for hundreds of thousands of press cycles, with zero jamming, noise or backlash. Resistance peaks at the bottom squat position to maximize muscle squeeze, with smooth eccentric stretching during descent. All pivot and plate loading points are reinforced with double steel plates and triangular bracing. Quenched wear-resistant spindles and lifetime maintenance-free bearings cut long-term gym maintenance costs greatly. The reinforced frame resists deformation and tipping under full maximum load.

4. Full-Scenario Commercial Compatibility to Complete Lower-Body Training Matrix

One machine covers leg press, calf raise and unilateral corrective training to save valuable floor space. It forms a complete lower-body push/pull training system together with linear hack press, leg extension, leg curl and seated calf raise machines, serving as essential core leg equipment for leg-day sessions. Ideal for beginner technique learning, bodybuilding hypertrophy, athlete explosive power training and low-impact joint rehabilitation. Compact footprint fits large commercial gyms and private premium home gyms equally well.

Premium Commercial Construction

1.Heavy-Duty Q235 Steel Frame: 3.0mm wall thickness, fully robotic seam welding with post-weld high-temperature stress relief treatment.

Double-layer electrostatic powder coating with sandblasting pretreatment for superior rust, sweat and scratch resistance.

Net machine weight 226kg, widened trapezoidal base with thick anti-slip rubber foot pads delivers zero shifting or tipping under full unilateral heavy load.

2.Strict Factory Inspection & CE Compliance: Every unit passes full load bearing, 100,000-cycle fatigue, stability and stroke limit tests. All frame edges are fully rounded;

weight horns feature anti-drop collars, footplates are anti-slip and stroke limiters prevent over-range movement, fully complying with international CE commercial fitness safety standards.

Item Specification

Application Scenarios Commercial Gym, Iron Gym, Professional Sports Conditioning Center, Personal Training Studio, Sports Rehabilitation Clinic, Premium Home Garage Gym

Standard Training Guidance

Mode 1: Standard Leg Press

1.Sit fully against the backrest, rest upper back firmly on padding, place feet shoulder-width forward on footplate with toes slightly outward, grip safety handles and release lock.

2.Lower sled evenly by hinging hips and knees until thighs near the chest, keep full back contact at all times.

3.Drive upward via full-heel push-off, squeeze leg muscles for 1 second at full extension, lower slowly under controlled eccentric tension. Prohibited: Excessive knee forward drift, tiptoe stance, lumbar rounding, inertial bouncing, pulling with arms.

Mode 2: Wide Rear Stance (Glute & Hamstring Focus)

Place feet wider toward the rear of the footplate, push hips backward during descent to stretch posterior chain, initiate upward drive mainly with glute contraction.

Mode 3: Forefoot Calf Raise (Gastrocnemius Focus)

Rest balls of feet on front edge of footplate with heels hanging free, drive full up/down motion only with calf contraction.

Mode 4: Unilateral Single-Leg Training (Strength Imbalance Correction)

Stand with one foot centered on the footplate, load separate weight per side to fix bilateral leg strength discrepancy and uneven leg posture. Training volume reference: 3–4 sets × 10–15 reps for hypertrophy; 6–10 reps per set for heavy strength training; 12–18 light reps for rehabilitation. Recommended matching equipment: Leg Extension, Leg Curl, 45° Linear Hack Press, Standing Calf Raise for balanced full lower-body development.

Closing CTA

To complete safe heavy quadriceps training, sculpt full leg & glute contour, and avoid lumbar/knee injuries from free barbell squats, the Yingruis 45° Linear Leg Press Plate-Loaded Machine is an irreplaceable flagship essential lower-body equipment for commercial gym strength zones. Featuring industry-standard precision dual linear guide rails and independent bilateral plate loading for differentiated weight adjustment, multi-stance design enables targeted muscle differentiation, while full adjustable enclosed support delivers superior long-term joint protection alongside commercial-grade rugged durability. As a direct factory supplier, we provide full customization services on frame color, laser logo engraving and structural dimensions, fast delivery from abundant ready stock and complete long-term full-machine after-sales warranty. It is the optimal cost-effective choice for new gym full lower-body equipment fitting, existing gym facility upgrading, and procurement for professional sports teams & rehabilitation centers.
